Joint analysis of GRB 130427A with GBM, LLE and LAT data
[1]:
import warnings
warnings.simplefilter("ignore")
from threeML import *
from threeML.utils.data_download.Fermi_LAT.download_LAT_data import LAT_dataset
import matplotlib.pyplot as plt
import numpy as np
import astropy.units as u
from astropy.io import fits
%matplotlib inline
[2]:
gbm_catalog = FermiGBMBurstCatalog()
source_name = "GRB130427324"
gbm_catalog.query_sources(source_name)
grb_info = gbm_catalog.get_detector_information()[source_name]
grb_info
[2]:
{'source': {'fluence': '4.096000-142.338000', 'peak': '8.192000-9.216000'},
'background': {'pre': '-285.420000--41.670000',
'post': '381.250000-500.000000',
'full': '-285.420000--41.670000,381.250000-500.000000'},
'trigger': 'bn130427324',
'detectors': array(['n6', 'n9', 'na', 'b1'], dtype='<U2'),
'best fit model': {'fluence': 'band', 'peak': 'band'},
'ra': 173.136,
'dec': 27.7129}
[3]:
trigger_name = "bn130427324"
met = 388741629.420
ra = 173.136
dec = 27.7129
tstart = 0
tstop = 100
gbm_detectors = ["n6", "n9", "b1"]
roi = 10
zmax = 100.0
thetamax = 180.0
irf = "p8_transient010e"
Prepare GBM data
[4]:
dload = download_GBM_trigger_data(trigger_name, detectors=gbm_detectors)
[5]:
bkg_selection = ["-285--41", "310-355"]
gbm_plugins = []
time_series = {}
for det in gbm_detectors:
# Use CSPEC data to fit the background using the background selections.
# We use CSPEC because it has a longer duration for fitting the background.
ts_cspec = TimeSeriesBuilder.from_gbm_cspec_or_ctime(
det, cspec_or_ctime_file=dload[det]["cspec"], rsp_file=dload[det]["rsp"]
)
ts_cspec.set_background_interval(*bkg_selection)
# The background is saved to an HDF5 file that stores the polynomial coefficients and selections
ts_cspec.save_background(f"{det}_bkg.h5", overwrite=True)
# We use TTE data for the actual spectral analysis
ts_tte = TimeSeriesBuilder.from_gbm_tte(
det,
tte_file=dload[det]["tte"],
rsp_file=dload[det]["rsp"],
restore_background=f"{det}_bkg.h5",
)
time_series[det] = ts_tte
# The source selection from the catalog is set

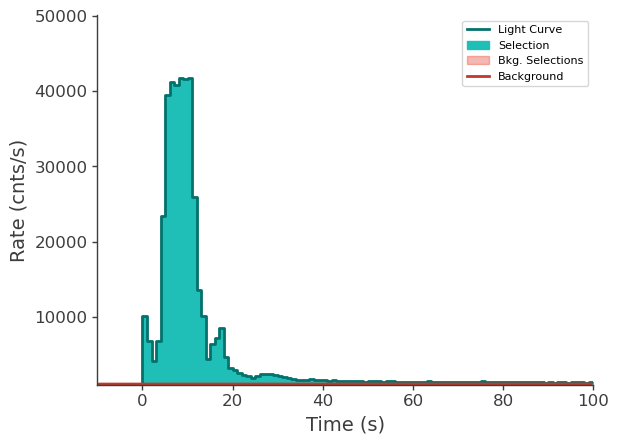

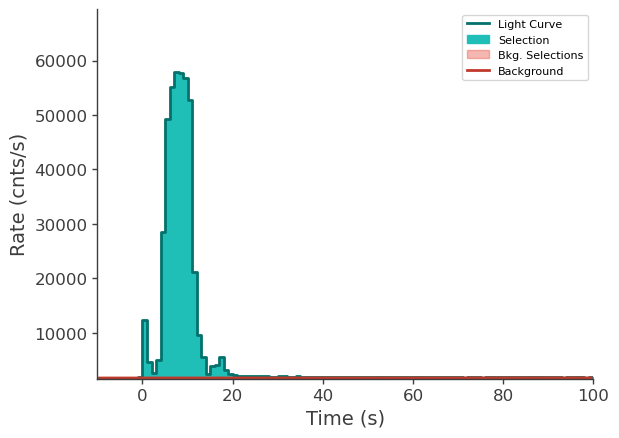

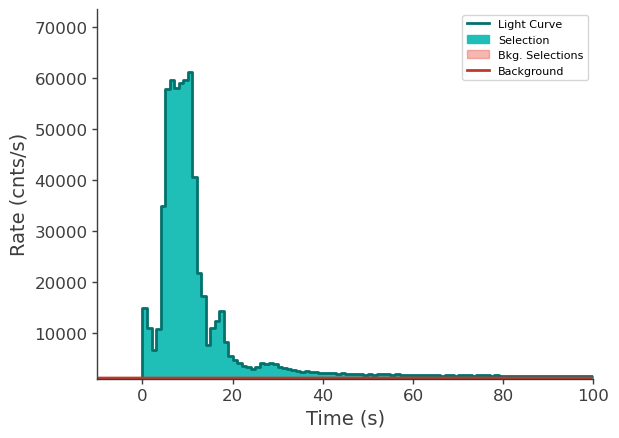

ts_tte.set_active_time_interval("%f-%f" % (tstart, tstop))
# The plugin for the time integrated analysis is created for each detector
fluence_plugin = ts_tte.to_spectrumlike()
# GBM channel selections for spectral analysis
if det.startswith("b"):
fluence_plugin.set_active_measurements("900-30000")
else:
fluence_plugin.set_active_measurements("40-900")
fluence_plugin.rebin_on_background(1.0)
gbm_plugins.append(fluence_plugin)
The default choice for MATRIX extension failed:KeyError("Extension ('MATRIX', 1) not found.")available: None 'EBOUNDS' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX'
No TLMIN keyword found. This DRM does not follow OGIP standards. Assuming TLMIN=1
WARNING RuntimeWarning: invalid value encountered in divide
WARNING RuntimeWarning: invalid value encountered in divide
The default choice for MATRIX extension failed:KeyError("Extension ('MATRIX', 1) not found.")available: None 'EBOUNDS' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX'
No TLMIN keyword found. This DRM does not follow OGIP standards. Assuming TLMIN=1
The default choice for MATRIX extension failed:KeyError("Extension ('MATRIX', 2) not found.")available: None 'EBOUNDS' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX'
No TLMIN keyword found. This DRM does not follow OGIP standards. Assuming TLMIN=1
The default choice for MATRIX extension failed:KeyError("Extension ('MATRIX', 3) not found.")available: None 'EBOUNDS' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX'
No TLMIN keyword found. This DRM does not follow OGIP standards. Assuming TLMIN=1
The default choice for MATRIX extension failed:KeyError("Extension ('MATRIX', 4) not found.")available: None 'EBOUNDS' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX'
No TLMIN keyword found. This DRM does not follow OGIP standards. Assuming TLMIN=1
The default choice for MATRIX extension failed:KeyError("Extension ('MATRIX', 5) not found.")available: None 'EBOUNDS' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX'
No TLMIN keyword found. This DRM does not follow OGIP standards. Assuming TLMIN=1
The default choice for MATRIX extension failed:KeyError("Extension ('MATRIX', 6) not found.")available: None 'EBOUNDS' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX'
No TLMIN keyword found. This DRM does not follow OGIP standards. Assuming TLMIN=1
The default choice for MATRIX extension failed:KeyError("Extension ('MATRIX', 7) not found.")available: None 'EBOUNDS' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX'
No TLMIN keyword found. This DRM does not follow OGIP standards. Assuming TLMIN=1
The default choice for MATRIX extension failed:KeyError("Extension ('MATRIX', 8) not found.")available: None 'EBOUNDS' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX'
No TLMIN keyword found. This DRM does not follow OGIP standards. Assuming TLMIN=1
The default choice for MATRIX extension failed:KeyError("Extension ('MATRIX', 9) not found.")available: None 'EBOUNDS' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX'
No TLMIN keyword found. This DRM does not follow OGIP standards. Assuming TLMIN=1
The default choice for MATRIX extension failed:KeyError("Extension ('MATRIX', 10) not found.")available: None 'EBOUNDS' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX'
No TLMIN keyword found. This DRM does not follow OGIP standards. Assuming TLMIN=1
The TTE file /home/runner/work/threeML/threeML/docs/md_docs/slow_execute/glg_tte_n6_bn130427324_v00.fit.gz contains duplicate time tags and is thus invalid. Contact the FSSC
The default choice for MATRIX extension failed:KeyError("Extension ('MATRIX', 1) not found.")available: None 'EBOUNDS' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX'
No TLMIN keyword found. This DRM does not follow OGIP standards. Assuming TLMIN=1
The default choice for MATRIX extension failed:KeyError("Extension ('MATRIX', 2) not found.")available: None 'EBOUNDS' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX'
No TLMIN keyword found. This DRM does not follow OGIP standards. Assuming TLMIN=1
The default choice for MATRIX extension failed:KeyError("Extension ('MATRIX', 3) not found.")available: None 'EBOUNDS' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX'
No TLMIN keyword found. This DRM does not follow OGIP standards. Assuming TLMIN=1
The default choice for MATRIX extension failed:KeyError("Extension ('MATRIX', 4) not found.")available: None 'EBOUNDS' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX'
No TLMIN keyword found. This DRM does not follow OGIP standards. Assuming TLMIN=1
The default choice for MATRIX extension failed:KeyError("Extension ('MATRIX', 5) not found.")available: None 'EBOUNDS' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX'
No TLMIN keyword found. This DRM does not follow OGIP standards. Assuming TLMIN=1
The default choice for MATRIX extension failed:KeyError("Extension ('MATRIX', 6) not found.")available: None 'EBOUNDS' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX'
No TLMIN keyword found. This DRM does not follow OGIP standards. Assuming TLMIN=1
The default choice for MATRIX extension failed:KeyError("Extension ('MATRIX', 7) not found.")available: None 'EBOUNDS' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX'
No TLMIN keyword found. This DRM does not follow OGIP standards. Assuming TLMIN=1
The default choice for MATRIX extension failed:KeyError("Extension ('MATRIX', 8) not found.")available: None 'EBOUNDS' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX'
No TLMIN keyword found. This DRM does not follow OGIP standards. Assuming TLMIN=1
The default choice for MATRIX extension failed:KeyError("Extension ('MATRIX', 9) not found.")available: None 'EBOUNDS' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX'
No TLMIN keyword found. This DRM does not follow OGIP standards. Assuming TLMIN=1
The default choice for MATRIX extension failed:KeyError("Extension ('MATRIX', 10) not found.")available: None 'EBOUNDS' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX'
No TLMIN keyword found. This DRM does not follow OGIP standards. Assuming TLMIN=1
The default choice for MATRIX extension failed:KeyError("Extension ('MATRIX', 1) not found.")available: None 'EBOUNDS' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX'
No TLMIN keyword found. This DRM does not follow OGIP standards. Assuming TLMIN=1
Minimum MC energy (5.0) is larger than minimum EBOUNDS energy (4.410999774932861)
WARNING RuntimeWarning: invalid value encountered in divide
WARNING RuntimeWarning: invalid value encountered in divide
The default choice for MATRIX extension failed:KeyError("Extension ('MATRIX', 1) not found.")available: None 'EBOUNDS' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX'
No TLMIN keyword found. This DRM does not follow OGIP standards. Assuming TLMIN=1
Minimum MC energy (5.0) is larger than minimum EBOUNDS energy (4.410999774932861)
The default choice for MATRIX extension failed:KeyError("Extension ('MATRIX', 2) not found.")available: None 'EBOUNDS' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX'
No TLMIN keyword found. This DRM does not follow OGIP standards. Assuming TLMIN=1
Minimum MC energy (5.0) is larger than minimum EBOUNDS energy (4.410999774932861)
The default choice for MATRIX extension failed:KeyError("Extension ('MATRIX', 3) not found.")available: None 'EBOUNDS' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX'
No TLMIN keyword found. This DRM does not follow OGIP standards. Assuming TLMIN=1
Minimum MC energy (5.0) is larger than minimum EBOUNDS energy (4.410999774932861)
The default choice for MATRIX extension failed:KeyError("Extension ('MATRIX', 4) not found.")available: None 'EBOUNDS' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX'
No TLMIN keyword found. This DRM does not follow OGIP standards. Assuming TLMIN=1
Minimum MC energy (5.0) is larger than minimum EBOUNDS energy (4.410999774932861)
The default choice for MATRIX extension failed:KeyError("Extension ('MATRIX', 5) not found.")available: None 'EBOUNDS' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX'
No TLMIN keyword found. This DRM does not follow OGIP standards. Assuming TLMIN=1
Minimum MC energy (5.0) is larger than minimum EBOUNDS energy (4.410999774932861)
The default choice for MATRIX extension failed:KeyError("Extension ('MATRIX', 6) not found.")available: None 'EBOUNDS' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX'
No TLMIN keyword found. This DRM does not follow OGIP standards. Assuming TLMIN=1
Minimum MC energy (5.0) is larger than minimum EBOUNDS energy (4.410999774932861)
The default choice for MATRIX extension failed:KeyError("Extension ('MATRIX', 7) not found.")available: None 'EBOUNDS' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX'
No TLMIN keyword found. This DRM does not follow OGIP standards. Assuming TLMIN=1
Minimum MC energy (5.0) is larger than minimum EBOUNDS energy (4.410999774932861)
The default choice for MATRIX extension failed:KeyError("Extension ('MATRIX', 8) not found.")available: None 'EBOUNDS' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX'
No TLMIN keyword found. This DRM does not follow OGIP standards. Assuming TLMIN=1
Minimum MC energy (5.0) is larger than minimum EBOUNDS energy (4.410999774932861)
The default choice for MATRIX extension failed:KeyError("Extension ('MATRIX', 9) not found.")available: None 'EBOUNDS' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX'
No TLMIN keyword found. This DRM does not follow OGIP standards. Assuming TLMIN=1
Minimum MC energy (5.0) is larger than minimum EBOUNDS energy (4.410999774932861)
The default choice for MATRIX extension failed:KeyError("Extension ('MATRIX', 10) not found.")available: None 'EBOUNDS' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX'
No TLMIN keyword found. This DRM does not follow OGIP standards. Assuming TLMIN=1
Minimum MC energy (5.0) is larger than minimum EBOUNDS energy (4.410999774932861)
Minimum MC energy (5.0) is larger than minimum EBOUNDS energy (4.410999774932861)
The TTE file /home/runner/work/threeML/threeML/docs/md_docs/slow_execute/glg_tte_n9_bn130427324_v00.fit.gz contains duplicate time tags and is thus invalid. Contact the FSSC
The default choice for MATRIX extension failed:KeyError("Extension ('MATRIX', 1) not found.")available: None 'EBOUNDS' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX'
No TLMIN keyword found. This DRM does not follow OGIP standards. Assuming TLMIN=1
Minimum MC energy (5.0) is larger than minimum EBOUNDS energy (4.410999774932861)
The default choice for MATRIX extension failed:KeyError("Extension ('MATRIX', 2) not found.")available: None 'EBOUNDS' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX'
No TLMIN keyword found. This DRM does not follow OGIP standards. Assuming TLMIN=1
Minimum MC energy (5.0) is larger than minimum EBOUNDS energy (4.410999774932861)
The default choice for MATRIX extension failed:KeyError("Extension ('MATRIX', 3) not found.")available: None 'EBOUNDS' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX'
No TLMIN keyword found. This DRM does not follow OGIP standards. Assuming TLMIN=1
Minimum MC energy (5.0) is larger than minimum EBOUNDS energy (4.410999774932861)
The default choice for MATRIX extension failed:KeyError("Extension ('MATRIX', 4) not found.")available: None 'EBOUNDS' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX'
No TLMIN keyword found. This DRM does not follow OGIP standards. Assuming TLMIN=1
Minimum MC energy (5.0) is larger than minimum EBOUNDS energy (4.410999774932861)
The default choice for MATRIX extension failed:KeyError("Extension ('MATRIX', 5) not found.")available: None 'EBOUNDS' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX'
No TLMIN keyword found. This DRM does not follow OGIP standards. Assuming TLMIN=1
Minimum MC energy (5.0) is larger than minimum EBOUNDS energy (4.410999774932861)
The default choice for MATRIX extension failed:KeyError("Extension ('MATRIX', 6) not found.")available: None 'EBOUNDS' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX'
No TLMIN keyword found. This DRM does not follow OGIP standards. Assuming TLMIN=1
Minimum MC energy (5.0) is larger than minimum EBOUNDS energy (4.410999774932861)
The default choice for MATRIX extension failed:KeyError("Extension ('MATRIX', 7) not found.")available: None 'EBOUNDS' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX'
No TLMIN keyword found. This DRM does not follow OGIP standards. Assuming TLMIN=1
Minimum MC energy (5.0) is larger than minimum EBOUNDS energy (4.410999774932861)
The default choice for MATRIX extension failed:KeyError("Extension ('MATRIX', 8) not found.")available: None 'EBOUNDS' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX'
No TLMIN keyword found. This DRM does not follow OGIP standards. Assuming TLMIN=1
Minimum MC energy (5.0) is larger than minimum EBOUNDS energy (4.410999774932861)
The default choice for MATRIX extension failed:KeyError("Extension ('MATRIX', 9) not found.")available: None 'EBOUNDS' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX'
No TLMIN keyword found. This DRM does not follow OGIP standards. Assuming TLMIN=1
Minimum MC energy (5.0) is larger than minimum EBOUNDS energy (4.410999774932861)
The default choice for MATRIX extension failed:KeyError("Extension ('MATRIX', 10) not found.")available: None 'EBOUNDS' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX'
No TLMIN keyword found. This DRM does not follow OGIP standards. Assuming TLMIN=1
Minimum MC energy (5.0) is larger than minimum EBOUNDS energy (4.410999774932861)
Minimum MC energy (5.0) is larger than minimum EBOUNDS energy (4.410999774932861)
Minimum MC energy (5.0) is larger than minimum EBOUNDS energy (4.410999774932861)
The default choice for MATRIX extension failed:KeyError("Extension ('MATRIX', 1) not found.")available: None 'EBOUNDS' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX'
No TLMIN keyword found. This DRM does not follow OGIP standards. Assuming TLMIN=1
WARNING RuntimeWarning: invalid value encountered in divide
WARNING RuntimeWarning: invalid value encountered in divide
The default choice for MATRIX extension failed:KeyError("Extension ('MATRIX', 1) not found.")available: None 'EBOUNDS' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX'
No TLMIN keyword found. This DRM does not follow OGIP standards. Assuming TLMIN=1
The default choice for MATRIX extension failed:KeyError("Extension ('MATRIX', 2) not found.")available: None 'EBOUNDS' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX'
No TLMIN keyword found. This DRM does not follow OGIP standards. Assuming TLMIN=1
The default choice for MATRIX extension failed:KeyError("Extension ('MATRIX', 3) not found.")available: None 'EBOUNDS' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX'
No TLMIN keyword found. This DRM does not follow OGIP standards. Assuming TLMIN=1
The default choice for MATRIX extension failed:KeyError("Extension ('MATRIX', 4) not found.")available: None 'EBOUNDS' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX'
No TLMIN keyword found. This DRM does not follow OGIP standards. Assuming TLMIN=1
The default choice for MATRIX extension failed:KeyError("Extension ('MATRIX', 5) not found.")available: None 'EBOUNDS' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX'
No TLMIN keyword found. This DRM does not follow OGIP standards. Assuming TLMIN=1
The default choice for MATRIX extension failed:KeyError("Extension ('MATRIX', 6) not found.")available: None 'EBOUNDS' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX'
No TLMIN keyword found. This DRM does not follow OGIP standards. Assuming TLMIN=1
The default choice for MATRIX extension failed:KeyError("Extension ('MATRIX', 7) not found.")available: None 'EBOUNDS' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX'
No TLMIN keyword found. This DRM does not follow OGIP standards. Assuming TLMIN=1
The default choice for MATRIX extension failed:KeyError("Extension ('MATRIX', 8) not found.")available: None 'EBOUNDS' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX'
No TLMIN keyword found. This DRM does not follow OGIP standards. Assuming TLMIN=1
The default choice for MATRIX extension failed:KeyError("Extension ('MATRIX', 9) not found.")available: None 'EBOUNDS' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX'
No TLMIN keyword found. This DRM does not follow OGIP standards. Assuming TLMIN=1
The default choice for MATRIX extension failed:KeyError("Extension ('MATRIX', 10) not found.")available: None 'EBOUNDS' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX'
No TLMIN keyword found. This DRM does not follow OGIP standards. Assuming TLMIN=1
The TTE file /home/runner/work/threeML/threeML/docs/md_docs/slow_execute/glg_tte_b1_bn130427324_v00.fit.gz contains duplicate time tags and is thus invalid. Contact the FSSC
The default choice for MATRIX extension failed:KeyError("Extension ('MATRIX', 1) not found.")available: None 'EBOUNDS' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX'
No TLMIN keyword found. This DRM does not follow OGIP standards. Assuming TLMIN=1
The default choice for MATRIX extension failed:KeyError("Extension ('MATRIX', 2) not found.")available: None 'EBOUNDS' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX'
No TLMIN keyword found. This DRM does not follow OGIP standards. Assuming TLMIN=1
The default choice for MATRIX extension failed:KeyError("Extension ('MATRIX', 3) not found.")available: None 'EBOUNDS' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX'
No TLMIN keyword found. This DRM does not follow OGIP standards. Assuming TLMIN=1
The default choice for MATRIX extension failed:KeyError("Extension ('MATRIX', 4) not found.")available: None 'EBOUNDS' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX'
No TLMIN keyword found. This DRM does not follow OGIP standards. Assuming TLMIN=1
The default choice for MATRIX extension failed:KeyError("Extension ('MATRIX', 5) not found.")available: None 'EBOUNDS' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX'
No TLMIN keyword found. This DRM does not follow OGIP standards. Assuming TLMIN=1
The default choice for MATRIX extension failed:KeyError("Extension ('MATRIX', 6) not found.")available: None 'EBOUNDS' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX'
No TLMIN keyword found. This DRM does not follow OGIP standards. Assuming TLMIN=1
The default choice for MATRIX extension failed:KeyError("Extension ('MATRIX', 7) not found.")available: None 'EBOUNDS' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX'
No TLMIN keyword found. This DRM does not follow OGIP standards. Assuming TLMIN=1
The default choice for MATRIX extension failed:KeyError("Extension ('MATRIX', 8) not found.")available: None 'EBOUNDS' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX'
No TLMIN keyword found. This DRM does not follow OGIP standards. Assuming TLMIN=1
The default choice for MATRIX extension failed:KeyError("Extension ('MATRIX', 9) not found.")available: None 'EBOUNDS' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX'
No TLMIN keyword found. This DRM does not follow OGIP standards. Assuming TLMIN=1
The default choice for MATRIX extension failed:KeyError("Extension ('MATRIX', 10) not found.")available: None 'EBOUNDS' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX' 'SPECRESP MATRIX'
No TLMIN keyword found. This DRM does not follow OGIP standards. Assuming TLMIN=1
[6]:
time_series["n6"].view_lightcurve(-10, 100)
time_series["n9"].view_lightcurve(-10, 100)
time_series["b1"].view_lightcurve(-10, 100)
[6]:
Prepare LLE data
[7]:
lle_dload = download_LLE_trigger_data(trigger_name)
[8]:
bkg_selection = ["-285--41", "400-500"]
emin, emax = 30 * u.MeV, 100 * u.MeV
lle_time_series = TimeSeriesBuilder.from_lat_lle(
"lat_lle",
lle_file=lle_dload["lle"],
ft2_file=lle_dload["ft2"],
rsp_file=lle_dload["rsp"],
)
lle_time_series.set_background_interval(*bkg_selection)
lle_time_series.save_background("lle_bkg.h5", overwrite=True)
lle_time_series.set_active_time_interval("%d-%d" % (tstart, tstop))
lle_plugin = lle_time_series.to_spectrumlike()
lle_plugin.set_active_measurements(
"%d-%d" % (emin.to("keV").value, emax.to("keV").value)
)
lle_plugin.use_effective_area_correction(0.8, 1.2)
The default choice for MATRIX extension failed:KeyError("Extension ('MATRIX', 1) not found.")available: None 'EBOUNDS' 'SPECRESP MATRIX'
4.4799999999999995 percent of samples have been thrown away because they failed the constraints on the parameters. This results might not be suitable for error propagation. Enlarge the boundaries until you loose less than 1 percent of the samples.
9.46 percent of samples have been thrown away because they failed the constraints on the parameters. This results might not be suitable for error propagation. Enlarge the boundaries until you loose less than 1 percent of the samples.
16.8 percent of samples have been thrown away because they failed the constraints on the parameters. This results might not be suitable for error propagation. Enlarge the boundaries until you loose less than 1 percent of the samples.
16.36 percent of samples have been thrown away because they failed the constraints on the parameters. This results might not be suitable for error propagation. Enlarge the boundaries until you loose less than 1 percent of the samples.
5.94 percent of samples have been thrown away because they failed the constraints on the parameters. This results might not be suitable for error propagation. Enlarge the boundaries until you loose less than 1 percent of the samples.
24.98 percent of samples have been thrown away because they failed the constraints on the parameters. This results might not be suitable for error propagation. Enlarge the boundaries until you loose less than 1 percent of the samples.
8.62 percent of samples have been thrown away because they failed the constraints on the parameters. This results might not be suitable for error propagation. Enlarge the boundaries until you loose less than 1 percent of the samples.
20.32 percent of samples have been thrown away because they failed the constraints on the parameters. This results might not be suitable for error propagation. Enlarge the boundaries until you loose less than 1 percent of the samples.
11.1 percent of samples have been thrown away because they failed the constraints on the parameters. This results might not be suitable for error propagation. Enlarge the boundaries until you loose less than 1 percent of the samples.
1.1400000000000001 percent of samples have been thrown away because they failed the constraints on the parameters. This results might not be suitable for error propagation. Enlarge the boundaries until you loose less than 1 percent of the samples.
6.260000000000001 percent of samples have been thrown away because they failed the constraints on the parameters. This results might not be suitable for error propagation. Enlarge the boundaries until you loose less than 1 percent of the samples.
21.18 percent of samples have been thrown away because they failed the constraints on the parameters. This results might not be suitable for error propagation. Enlarge the boundaries until you loose less than 1 percent of the samples.
11.86 percent of samples have been thrown away because they failed the constraints on the parameters. This results might not be suitable for error propagation. Enlarge the boundaries until you loose less than 1 percent of the samples.
8.200000000000001 percent of samples have been thrown away because they failed the constraints on the parameters. This results might not be suitable for error propagation. Enlarge the boundaries until you loose less than 1 percent of the samples.
50.56 percent of samples have been thrown away because they failed the constraints on the parameters. This results might not be suitable for error propagation. Enlarge the boundaries until you loose less than 1 percent of the samples.
The current value of parameter a is very close to its lower bound when starting the fit. Fixing it
50.3 percent of samples have been thrown away because they failed the constraints on the parameters. This results might not be suitable for error propagation. Enlarge the boundaries until you loose less than 1 percent of the samples.
48.88 percent of samples have been thrown away because they failed the constraints on the parameters. This results might not be suitable for error propagation. Enlarge the boundaries until you loose less than 1 percent of the samples.
49.980000000000004 percent of samples have been thrown away because they failed the constraints on the parameters. This results might not be suitable for error propagation. Enlarge the boundaries until you loose less than 1 percent of the samples.
16.919999999999998 percent of samples have been thrown away because they failed the constraints on the parameters. This results might not be suitable for error propagation. Enlarge the boundaries until you loose less than 1 percent of the samples.
50.94 percent of samples have been thrown away because they failed the constraints on the parameters. This results might not be suitable for error propagation. Enlarge the boundaries until you loose less than 1 percent of the samples.
48.480000000000004 percent of samples have been thrown away because they failed the constraints on the parameters. This results might not be suitable for error propagation. Enlarge the boundaries until you loose less than 1 percent of the samples.
37.56 percent of samples have been thrown away because they failed the constraints on the parameters. This results might not be suitable for error propagation. Enlarge the boundaries until you loose less than 1 percent of the samples.
49.1 percent of samples have been thrown away because they failed the constraints on the parameters. This results might not be suitable for error propagation. Enlarge the boundaries until you loose less than 1 percent of the samples.
The current value of parameter a is very close to its lower bound when starting the fit. Fixing it
49.94 percent of samples have been thrown away because they failed the constraints on the parameters. This results might not be suitable for error propagation. Enlarge the boundaries until you loose less than 1 percent of the samples.
[9]:

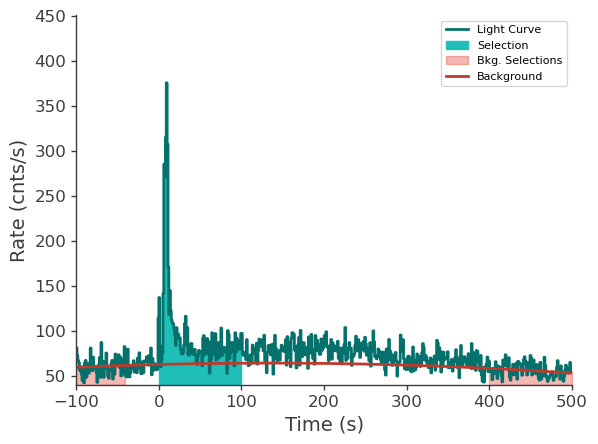

lle_time_series.view_lightcurve(-100, 500)
[9]:
Prepare LAT data
[10]:
LATdataset = LAT_dataset()
LATdataset.make_LAT_dataset(
ra=ra,
dec=dec,
radius=12,
trigger_time=met,
tstart=0,
tstop=1000,
data_type="Extended",
destination_directory=".",
Emin=100.0, # 100 MeV
Emax=100000.0, # 100 GeV
)
Only one FT1 file provided. Skipping the merge...
Writing ./bn130427324/gll_cspec_tr_bn130427324_v00.rsp...
time -p gtselect infile=./bn130427324/gll_ft1_tr_bn130427324_v00.fit outfile=__temp_ft1.fits ra=173.136 dec=27.7129 rad=15.0 tmin=388741628.42 tmax=388742630.42 emin=10.0 emax=1000000.0 zmin=0.0 zmax=110.0 evclass="INDEF" evtype="INDEF" convtype=-1 phasemin=0.0 phasemax=1.0 evtable="EVENTS" chatter=2 clobber=yes debug=no gui=no mode="ql"
Done.
real 0.05
user 0.04
sys 0.00
Writing ./bn130427324/gll_cspec_tr_bn130427324_v00.pha...
* Get energy binning from the response matrix...
done.
* Run gtbindef and gtbin and bin in energy and time...
time -p gtbindef bintype="E" binfile=__ebins.txt outfile=__energyBins.fits energyunits="keV" chatter=2 clobber=yes debug=no gui=no mode="ql"
This is gtbindef version HEAD
real 0.00
user 0.00
sys 0.00
time -p gtbin evfile=/home/runner/work/threeML/threeML/docs/md_docs/slow_execute/__temp_ft1.fits scfile=/home/runner/work/threeML/threeML/docs/md_docs/slow_execute/bn130427324/gll_ft2_tr_bn130427324_v00.fit outfile=__gtllebin__pha2.pha algorithm="PHA2" ebinalg="FILE" emin=30.0 emax=200000.0 enumbins=0 denergy=0.0 ebinfile=__energyBins.fits tbinalg="LIN" tstart=388741629.42 tstop=388742629.42 dtime=4.096 tbinfile=NONE snratio=0.0 lcemin=0.0 lcemax=0.0 nxpix=0 nypix=0 binsz=0.0 coordsys="CEL" xref=0.0 yref=0.0 axisrot=0.0 rafield="RA" decfield="DEC" proj="AIT" hpx_ordering_scheme="RING" hpx_order=3 hpx_ebin=yes hpx_region="" evtable="EVENTS" sctable="SC_DATA" efield="ENERGY" tfield="TIME" chatter=1 clobber=yes debug=no gui=no mode="ql"
This is gtbin version HEAD
real 1.89
user 1.83
sys 0.06
done.
* Transform gtbin output in CSPEC format...
done.
* Updating keywords in the headers of the CSPEC file...
done.
gtllebin done!
[11]:

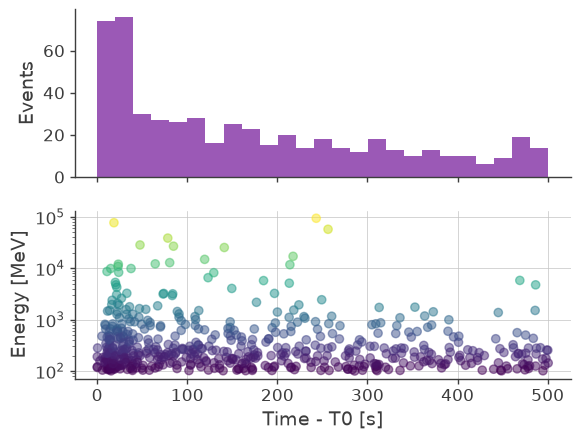

LATdataset.extract_events(roi, zmax, irf)
with fits.open(LATdataset.filt_file) as event_file:
lat_events = event_file["EVENTS"].data
event_times = lat_events["TIME"] - met
%matplotlib inline
fig, axs = plt.subplots(2, 1, sharex=True)
plt.sca(axs[0])
plt.hist(event_times)
plt.ylabel("Events")
plt.sca(axs[1])
plt.scatter(
event_times,
lat_events["ENERGY"],
marker="o",
c=lat_events["ENERGY"],
norm="log",
alpha=0.5,
zorder=20,
)
plt.yscale("log")
plt.ylabel("Energy [MeV]")
plt.xlabel("Time - T0 [s]")
plt.grid(True)
plt.show()
time -p gtmktime scfile=/home/runner/work/threeML/threeML/docs/md_docs/slow_execute/bn130427324/gll_ft2_tr_bn130427324_v00.fit sctable="SC_DATA" filter="(DATA_QUAL>0 || DATA_QUAL==-1) && LAT_CONFIG==1 && IN_SAA!=T && LIVETIME>0 && (ANGSEP(RA_ZENITH,DEC_ZENITH,173.136,27.7129)<=(100.0-10))" roicut=no evfile=/home/runner/work/threeML/threeML/docs/md_docs/slow_execute/bn130427324/gll_ft1_tr_bn130427324_v00.fit evtable="EVENTS" outfile="gll_ft1_tr_bn130427324_v00_mkt.fit" apply_filter=yes overwrite=no header_obstimes=yes tstart=388741629.42 tstop=388742629.42 gtifile="default" chatter=2 clobber=yes debug=no gui=no mode="ql"
real 0.03
user 0.03
sys 0.00
Using 305 data
time -p gtselect infile=gll_ft1_tr_bn130427324_v00_mkt.fit outfile=gll_ft1_tr_bn130427324_v00_filt.fit ra=173.136 dec=27.7129 rad=10.0 tmin=388741629.42 tmax=388742629.42 emin=100.0 emax=100000.0 zmin=0.0 zmax=100.0 evclass=32 evtype=3 convtype=-1 phasemin=0.0 phasemax=1.0 evtable="EVENTS" chatter=2 clobber=yes debug=no gui=no mode="ql"
Done.
real 0.05
user 0.04
sys 0.00
Selected 540 events.
[12]:
analysis_builder = TransientLATDataBuilder(
LATdataset.grb_name,
outfile=LATdataset.grb_name,
roi=roi,
tstarts="%d" % tstart,
tstops="%d" % tstop,
irf=irf,
zmax=zmax,
galactic_model="template",
particle_model="isotr template",
datarepository=".",
)
df = analysis_builder.display(get=True)
outfile 130427324
roi 10
tstarts 0
tstops 100
zmax 100.0
emin 100.0
emax 100000.0
irf p8_transient010e
galactic_model template
particle_model isotr template
source_model PowerLaw2
tsmin 20.0
strategy time
thetamax 180.0
spectralfiles no
liketype unbinned
optimizeposition no
datarepository .
ltcube
expomap
ulphindex -2
flemin 100
flemax 10000
fgl_mode fast
filter_GTI False
likelihood_profile False
remove_fits_files False
dtype: object
[13]:
LAT_observations = analysis_builder.run(recompute_intervals=True)
LAT_plugin = LAT_observations[0].to_LATLike()
**********
** 1 **SET PRINT .000
**********
**********
** 2 **SET NOWARN
**********
PARAMETER DEFINITIONS:
NO. NAME VALUE STEP SIZE LIMITS
1 'Integral ' .10000E-01 1.0000 .10000E-04 1000.0
2 'Index ' -2.0000 1.0000 -6.0000 .10000E-01
3 'Value ' 1.0000 1.0000 .70000 1.3000
4 'Normalizat' 1.0000 1.0000 .10000 10.000
**********
** 3 **SET ERR .5000
**********
**********
** 4 **SET GRAD 1.000
**********
**********
** 5 **MINIMIZE 600.0 2.000
**********
MIGRAD MINIMIZATION HAS CONVERGED.
MIGRAD WILL VERIFY CONVERGENCE AND ERROR MATRIX.
FCN= 771.6132 FROM MIGRAD STATUS=CONVERGED 73 CALLS 74 TOTAL
EDM= .65E-05 STRATEGY= 1 ERROR MATRIX ACCURATE
EXT PARAMETER STEP FIRST
NO. NAME VALUE ERROR SIZE DERIVATIVE
1 Integral .65236 .45023E-01 .10465E-02 -.98858
2 Index -1.9023 .57046E-01 .12103E-01 -.50613E-01
3 Value 1.0010 .14592 .30825 -.20057E-02
4 Normalizat 10.0000 7.4921 .45249 -.90524E-03
ERR DEF= .500
Final values:
Integral = 0.652365
Index = -1.90233
Value = 1.00099
Normalizat = 9.99999
**********
** 6 **HESSE
**********
FCN= 771.6132 FROM HESSE STATUS=OK 23 CALLS 97 TOTAL
EDM= .63E-05 STRATEGY= 1 ERROR MATRIX ACCURATE
EXT PARAMETER INTERNAL INTERNAL
NO. NAME VALUE ERROR STEP SIZE VALUE
1 Integral .65236 .44904E-01 .46267E-05 -1.5197
2 Index -1.9023 .56932E-01 .53508E-04 .37215
3 Value 1.0010 .14382 .13784E-02 .33048E-02
4 Normalizat 10.0000 7.5269 .21625E-01 1.5685
ERR DEF= .500
Minuit fit quality: 3 estimated distance: 6.33536e-06
Minuit parameter uncertainties:
1 0.0449045
2 0.0569358
3 0.149989
4 0.0186867
Requested intervals:
------------------------------------------------------
0.0 - 100.0
Data files:
-----------
eventfile /home/runner/work/threeML/threeML/docs/md_docs/slow_execute/bn130427324/gll_ft1_tr_bn130427324_v00.fit
ft2file /home/runner/work/threeML/threeML/docs/md_docs/slow_execute/bn130427324/gll_ft2_tr_bn130427324_v00.fit
rspfile /home/runner/work/threeML/threeML/docs/md_docs/slow_execute/bn130427324/gll_cspec_tr_bn130427324_v00.rsp
cspecfile /home/runner/work/threeML/threeML/docs/md_docs/slow_execute/bn130427324/gll_cspec_tr_bn130427324_v00.pha
ROI:
-----
R.A. 173.136
Dec. 27.7129
Radius 10.0
Interval # 1 (0.0-100.0):
-----------------------
-> gtdocountsmap.py rad='10.0' eventfile='/home/runner/work/threeML/threeML/docs/md_docs/slow_execute/bn130427324/gll_ft1_tr_bn130427324_v00.fit' zmax='100.0' thetamax='180.0' emin='100.0' emax='100000.0' skymap='130427324_LAT_skymap_0.0-100.0.fit' rspfile='/home/runner/work/threeML/threeML/docs/md_docs/slow_execute/bn130427324/gll_cspec_tr_bn130427324_v00.rsp' strategy='time' ft2file='/home/runner/work/threeML/threeML/docs/md_docs/slow_execute/bn130427324/gll_ft2_tr_bn130427324_v00.fit' tstart='0.0' tstop='100.0' ra='173.136' dec='27.7129' irf='p8_transient010e' allowEmpty='no'
time -p gtmktime scfile=/home/runner/work/threeML/threeML/docs/md_docs/slow_execute/bn130427324/gll_ft2_tr_bn130427324_v00.fit sctable="SC_DATA" filter="(DATA_QUAL>0 || DATA_QUAL==-1) && LAT_CONFIG==1 && IN_SAA!=T && LIVETIME>0 && (ANGSEP(RA_ZENITH,DEC_ZENITH,173.136,27.7129)<=(100.0-10.0))" roicut=no evfile=/home/runner/work/threeML/threeML/docs/md_docs/slow_execute/bn130427324/gll_ft1_tr_bn130427324_v00.fit evtable="EVENTS" outfile="gll_ft1_tr_bn130427324_v00_mkt.fit" apply_filter=yes overwrite=no header_obstimes=yes tstart=388741629.42 tstop=388741729.42 gtifile="default" chatter=2 clobber=yes debug=no gui=no mode="ql"
real 0.03
user 0.02
sys 0.00
Using 305 data
time -p gtselect infile=gll_ft1_tr_bn130427324_v00_mkt.fit outfile=gll_ft1_tr_bn130427324_v00_filt.fit ra=173.136 dec=27.7129 rad=10.0 tmin=388741629.42 tmax=388741729.42 emin=100.0 emax=100000.0 zmin=0.0 zmax=100.0 evclass=32 evtype=3 convtype=-1 phasemin=0.0 phasemax=1.0 evtable="EVENTS" chatter=2 clobber=yes debug=no gui=no mode="ql"
Done.
real 0.05
user 0.04
sys 0.00
Selected 233 events.
time -p gtbin evfile=gll_ft1_tr_bn130427324_v00_filt.fit scfile=/home/runner/work/threeML/threeML/docs/md_docs/slow_execute/bn130427324/gll_ft2_tr_bn130427324_v00.fit outfile=130427324_LAT_skymap_0.0-100.0.fit algorithm="CMAP" ebinalg="LOG" emin=30.0 emax=200000.0 ebinfile=NONE tbinalg="LIN" tbinfile=NONE nxpix=101 nypix=101 binsz=0.2 coordsys="CEL" xref=173.136 yref=27.7129 axisrot=0.0 rafield="RA" decfield="DEC" proj="AIT" hpx_ordering_scheme="RING" hpx_order=3 hpx_ebin=yes hpx_region="" evtable="EVENTS" sctable="SC_DATA" efield="ENERGY" tfield="TIME" chatter=2 clobber=yes debug=no gui=no mode="ql"
This is gtbin version HEAD
real 0.05
user 0.05
sys 0.00
Counts map saved in 130427324_LAT_skymap_0.0-100.0.fit
Total number of events in the counts map: 233
Total time in Good Time Intervals: 100.0
-> gtbuildxmlmodel xmlmodel='130427324_LAT_xmlmodel_0.0-100.0.xml' filteredeventfile='gll_ft1_tr_bn130427324_v00_filt.fit' galactic_model='template' particle_model='isotr template' ra='173.136' dec='27.7129' fgl_mode='fast' ft2file='/home/runner/work/threeML/threeML/docs/md_docs/slow_execute/bn130427324/gll_ft2_tr_bn130427324_v00.fit' source_model='PowerLaw2'
Found Isotropic template for irf P8R3_TRANSIENT010E_V3: /home/runner/miniconda3/envs/test_env/share/fermitools/refdata/fermi/galdiffuse/iso_P8R3_TRANSIENT010E_V3_v1.txt
Found Galactic template for IRF. P8R3_TRANSIENT010E_V3: /home/runner/miniconda3/envs/test_env/share/fermitools/refdata/fermi/galdiffuse/gll_iem_v07.fits
Cutting the template around the ROI:
addFGLsources( 173.136 27.7129 18.0 130427324_LAT_xmlmodel_0.0-100.0.xml 100.0 )
Kept 0 point sources from the FGL catalog
-> gtdolike.py spectralfiles='no' xmlmodel='130427324_LAT_xmlmodel_0.0-100.0.xml' liketype='unbinned' filteredeventfile='gll_ft1_tr_bn130427324_v00_filt.fit' rspfile='/home/runner/work/threeML/threeML/docs/md_docs/slow_execute/bn130427324/gll_cspec_tr_bn130427324_v00.rsp' showmodelimage='no' tsmin='20.0' optimizeposition='no' ft2file='/home/runner/work/threeML/threeML/docs/md_docs/slow_execute/bn130427324/gll_ft2_tr_bn130427324_v00.fit' skymap='130427324_LAT_skymap_0.0-100.0.fit' flemin='100.000000' flemax='10000.000000'
time -p gtltcube evfile="/home/runner/work/threeML/threeML/docs/md_docs/slow_execute/interval0.0-100.0/gll_ft1_tr_bn130427324_v00_filt.fit" evtable="EVENTS" scfile=__ft2temp.fits sctable="SC_DATA" outfile=gll_ft1_tr_bn130427324_v00_filt_ltcube.fit dcostheta=0.025 binsz=1.0 phibins=1 tmin=0.0 tmax=0.0 file_version="1" zmin=0.0 zmax=180.0 chatter=2 clobber=yes debug=no gui=no mode="ql"
Working on file __ft2temp.fits
......!
real 0.33
user 0.16
sys 0.16
/home/runner/miniconda3/envs/test_env/lib/python3.11/site-packages/fermitools/GtBurst/gtapps_mp/gtexpmap_mp.py 40 40 2 2 /home/runner/work/threeML/threeML/docs/md_docs/slow_execute/bn130427324/gll_ft2_tr_bn130427324_v00.fit /home/runner/work/threeML/threeML/docs/md_docs/slow_execute/interval0.0-100.0/gll_ft1_tr_bn130427324_v00_filt.fit gll_ft1_tr_bn130427324_v00_filt_ltcube.fit P8R3_TRANSIENT010E_V3 20.0 20 gll_ft1_tr_bn130427324_v00_filt_expomap.fit
Starting calculation of region 0.0,0.0 to 20.0,20.0
Completed calculation of region 0.0,0.0 to 20.0,20.0
Starting calculation of region 0.0,20.0 to 20.0,40.0
Completed calculation of region 0.0,20.0 to 20.0,40.0
Starting calculation of region 20.0,20.0 to 40.0,40.0
Completed calculation of region 20.0,20.0 to 40.0,40.0
Starting calculation of region 20.0,0.0 to 40.0,20.0
Completed calculation of region 20.0,0.0 to 40.0,20.0
Spawning 4 jobs...
Combining temporary files...
Deleting temporary files...
time -p gtdiffrsp evfile=/home/runner/work/threeML/threeML/docs/md_docs/slow_execute/interval0.0-100.0/gll_ft1_tr_bn130427324_v00_filt.fit evtable="EVENTS" scfile=/home/runner/work/threeML/threeML/docs/md_docs/slow_execute/bn130427324/gll_ft2_tr_bn130427324_v00.fit sctable="SC_DATA" srcmdl=130427324_LAT_xmlmodel_0.0-100.0.xml irfs="P8R3_TRANSIENT010E_V3" evclsmin="INDEF" evclass="INDEF" evtype="INDEF" convert=no chatter=2 clobber=yes debug=no gui=no mode="ql"
adding source GalacticTemplate
adding source IsotropicTemplate
Working on...
/home/runner/work/threeML/threeML/docs/md_docs/slow_execute/interval0.0-100.0/gll_ft1_tr_bn130427324_v00_filt.fit......................!
real 7.43
user 7.11
sys 0.31
Loading python Likelihood interface...
Applying a Gaussian prior with sigma 0.15 on the normalization of the Galactic Template
{'Norm': 1.0, 'Mean': 1.0, 'Sigma': 0.15, 'Offset': 0.0}
Likelihood settings:
Event file(s): /home/runner/work/threeML/threeML/docs/md_docs/slow_execute/interval0.0-100.0/gll_ft1_tr_bn130427324_v00_filt.fit
Spacecraft file(s): /home/runner/work/threeML/threeML/docs/md_docs/slow_execute/bn130427324/gll_ft2_tr_bn130427324_v00.fit
Exposure map: gll_ft1_tr_bn130427324_v00_filt_expomap.fit
Exposure cube: gll_ft1_tr_bn130427324_v00_filt_ltcube.fit
IRFs: P8R3_TRANSIENT010E_V3
Source model file: 130427324_LAT_xmlmodel_0.0-100.0.xml
Optimizer: Minuit
Performing likelihood fit...
Data 233.0
srcName 228.0711654565354
srcName 0.21216428870537518
srcName 3.8519232874938027
Resid 233.0 232.13525303273457 5.00806149863562
plotting GRB spectrum
srcName 228.0711654565354
|--------------------|---------------|----------| ----------|----------|------|
| Source name| Par. Name| Value| Error| Units| TS|
|--------------------|---------------|----------|------------|----------|------|
|GRB | | | | | 2540|
| | Integral| 0.000652| 4.49e-05| ph./cm2/s| |
| | Index| -1.9| 0.0569| -| |
| | LowerLimit| 100|n.a. (fixed)| MeV| |
| | UpperLimit| 1e+05|n.a. (fixed)| MeV| |
| | Energy flux| 5.5e-07| 4.99e-08| erg/cm2/s| |
| | Photon flux| 0.000643| 4.49e-05| ph./cm2/s| |
|GalacticTemplate | | | | | 1|
| | Value| 1| 0.15| -| |
| | Energy flux| 3.76e-07| 5.64e-08| erg/cm2/s| |
| | Photon flux| 0.00052| 7.79e-05| ph./cm2/s| |
|IsotropicTemplate | | | | | 4|
| | Normalization| 10| 0.0187| -| |
| | Energy flux| 7.82e-07| 1.46e-09| erg/cm2/s| |
| | Photon flux| 0.00158| 2.96e-06| ph./cm2/s| |
--------------------------------------------------------------------------------
*** All fluxes and upper limits have been computed in the 100.0 - 10000.0 energy range.
*** Upper limits (if any) are computed assuming a photon index of -2.0, with the 95.0 % c.l.
Log(likelihood) = 771.6131616797278
time -p gtsrcprob evfile=/home/runner/work/threeML/threeML/docs/md_docs/slow_execute/interval0.0-100.0/gll_ft1_tr_bn130427324_v00_filt.fit evtable="EVENTS" scfile=/home/runner/work/threeML/threeML/docs/md_docs/slow_execute/bn130427324/gll_ft2_tr_bn130427324_v00.fit sctable="SC_DATA" outfile=/home/runner/work/threeML/threeML/docs/md_docs/slow_execute/interval0.0-100.0/gll_ft1_tr_bn130427324_v00_filt_prob.fit srcmdl=gll_ft1_tr_bn130427324_v00_filt_likeRes.xml irfs="CALDB" evtype="INDEF" srclist= chatter=2 clobber=yes debug=no gui=no mode="ql"
real 3.42
user 3.11
sys 0.30
FermiLATLike - GTI SUM = 100.0
Define the first model to test
[14]:
band = Band()
band.alpha.prior = Truncated_gaussian(lower_bound=-1.5, upper_bound=1, mu=-1, sigma=0.5)
band.beta.prior = Truncated_gaussian(lower_bound=-5, upper_bound=-1.6, mu=-2, sigma=0.5)
band.xp.prior = Log_normal(mu=2, sigma=1)
band.xp.bounds = (None, None)
band.K.prior = Log_uniform_prior(lower_bound=1e-10, upper_bound=1e3)
source = PointSource(trigger_name, ra, dec, spectral_shape=band)
band_model = Model(source)
We have set the min_value of Band.xp to 1e-99 because there was a postive transform
We have set the min_value of Band.xp to 1e-99 because there was a postive transform
Run the joint fit
[15]:
datalist_1 = DataList(*gbm_plugins, lle_plugin, LAT_plugin)
jl_1 = JointLikelihood(band_model, datalist_1, verbose=False)
band_model.display()
print(jl_1.data_list.keys())
# This is needed to fix the galactic template to 1 (if needed)
band_model[LAT_plugin.get_name() + "_GalacticTemplate_Value"].value = 1.0
band_model[LAT_plugin.get_name() + "_GalacticTemplate_Value"].fix = True
band_model[LAT_plugin.get_name() + "_IsotropicTemplate_Normalization"].fix = False
# sbpl_model.display(complete=True)
jl_1.set_minimizer("minuit")
jl_1.fit()
Found Isotropic template for irf P8R3_TRANSIENT010E_V3: /home/runner/miniconda3/envs/test_env/share/fermitools/refdata/fermi/galdiffuse/iso_P8R3_TRANSIENT010E_V3_v1.txt
Found Galactic template for IRF. P8R3_TRANSIENT010E_V3: /home/runner/miniconda3/envs/test_env/share/fermitools/refdata/fermi/galdiffuse/gll_iem_v07.fits
Cutting the template around the ROI:
Model summary:
Free parameters (7):
Fixed parameters (6):
(abridged. Use complete=True to see all fixed parameters)
Properties (0):
(none)
Linked parameters (0):
(none)
Independent variables:
(none)
Linked functions (0):
(none)
| N | |
|---|---|
| Point sources | 1 |
| Extended sources | 0 |
| Particle sources | 0 |
Free parameters (7):
| value | min_value | max_value | unit | |
|---|---|---|---|---|
| bn130427324.spectrum.main.Band.K | 0.0001 | 0.0 | None | keV-1 s-1 cm-2 |
| bn130427324.spectrum.main.Band.alpha | -1.0 | -1.5 | 3.0 | |
| bn130427324.spectrum.main.Band.xp | 500.0 | 0.0 | None | keV |
| bn130427324.spectrum.main.Band.beta | -2.0 | -5.0 | -1.6 | |
| cons_lat_lle | 1.0 | 0.8 | 1.2 | |
| LAT0X100_GalacticTemplate_Value | 1.0 | 0.5 | 1.5 | |
| LAT0X100_IsotropicTemplate_Normalization | 1.0 | 0.1 | 5.0 |
Fixed parameters (6):
(abridged. Use complete=True to see all fixed parameters)
Properties (0):
(none)
Linked parameters (0):
(none)
Independent variables:
(none)
Linked functions (0):
(none)
odict_keys(['n6', 'n9', 'b1', 'lat_lle', 'LAT0X100'])
74.42 percent of samples have been thrown away because they failed the constraints on the parameters. This results might not be suitable for error propagation. Enlarge the boundaries until you loose less than 1 percent of the samples.
Best fit values:
| result | unit | |
|---|---|---|
| parameter | ||
| bn130427324.spectrum.main.Band.K | (1.496 +/- 0.004) x 10^-1 | 1 / (keV s cm2) |
| bn130427324.spectrum.main.Band.alpha | (-9.12 +/- 0.05) x 10^-1 | |
| bn130427324.spectrum.main.Band.xp | (7.76 +/- 0.07) x 10^2 | keV |
| bn130427324.spectrum.main.Band.beta | -2.837 +/- 0.011 | |
| cons_lat_lle | (8.0000 +/- 0.0005) x 10^-1 | |
| LAT0X100_IsotropicTemplate_Normalization | 5.000 +/- 0.018 |
Correlation matrix:
| 1.00 | 0.55 | -0.84 | 0.32 | -0.00 | -0.00 |
| 0.55 | 1.00 | -0.78 | 0.26 | -0.00 | -0.00 |
| -0.84 | -0.78 | 1.00 | -0.41 | 0.00 | 0.00 |
| 0.32 | 0.26 | -0.41 | 1.00 | -0.00 | -0.00 |
| -0.00 | -0.00 | 0.00 | -0.00 | 1.00 | 0.00 |
| -0.00 | -0.00 | 0.00 | -0.00 | 0.00 | 1.00 |
Values of -log(likelihood) at the minimum:
| -log(likelihood) | |
|---|---|
| n6 | 1109.980692 |
| n9 | 1063.105290 |
| b1 | 896.397958 |
| lat_lle | 85.188113 |
| LAT0X100 | 1913.535513 |
| total | 5068.207566 |
Values of statistical measures:
| statistical measures | |
|---|---|
| AIC | 10148.573622 |
| BIC | 10174.131120 |
[15]:
( value negative_error \
bn130427324.spectrum.main.Band.K 0.149628 -0.000403
bn130427324.spectrum.main.Band.alpha -0.912123 -0.005078
bn130427324.spectrum.main.Band.xp 775.990259 -6.361775
bn130427324.spectrum.main.Band.beta -2.837093 -0.010418
cons_lat_lle 0.800000 0.000011
LAT0X100_IsotropicTemplate_Normalization 4.999963 -0.023786
positive_error error \
bn130427324.spectrum.main.Band.K 0.000406 0.000405
bn130427324.spectrum.main.Band.alpha 0.004396 0.004737
bn130427324.spectrum.main.Band.xp 6.815326 6.588550
bn130427324.spectrum.main.Band.beta 0.010577 0.010498
cons_lat_lle 0.000070 0.000040
LAT0X100_IsotropicTemplate_Normalization -0.003208 0.010289
unit
bn130427324.spectrum.main.Band.K 1 / (keV s cm2)
bn130427324.spectrum.main.Band.alpha
bn130427324.spectrum.main.Band.xp keV
bn130427324.spectrum.main.Band.beta
cons_lat_lle
LAT0X100_IsotropicTemplate_Normalization ,
-log(likelihood)
n6 1109.980692
n9 1063.105290
b1 896.397958
lat_lle 85.188113
LAT0X100 1913.535513
total 5068.207566)
[16]:

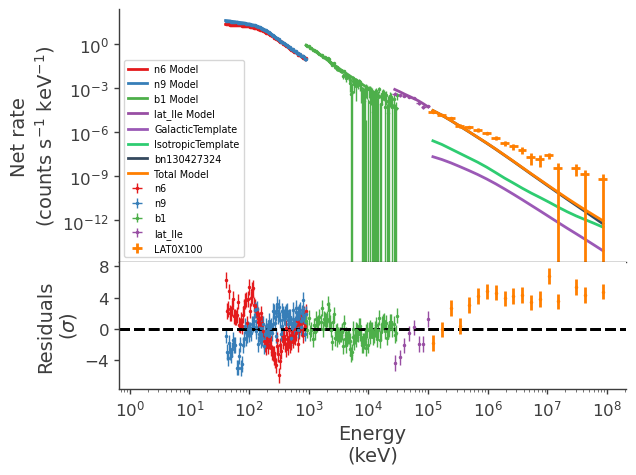

display_spectrum_model_counts(jl_1)
[16]:

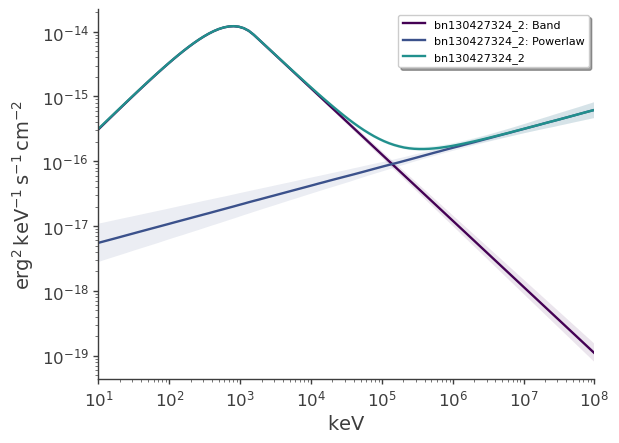

Define a second model to test
[17]:
spectrum = Band() + Powerlaw()
# spectrum.K_1 = 0.1
# spectrum.break_energy_1 = 800
# spectrum.beta_1 = -3
# spectrum.K_2 = 3
source_2 = PointSource("%s_2" % trigger_name, ra, dec, spectral_shape=spectrum)
comp_model = Model(source_2)
comp_model.display()
Model summary:
Free parameters (6):
Fixed parameters (4):
(abridged. Use complete=True to see all fixed parameters)
Properties (0):
(none)
Linked parameters (0):
(none)
Independent variables:
(none)
Linked functions (0):
(none)
| N | |
|---|---|
| Point sources | 1 |
| Extended sources | 0 |
| Particle sources | 0 |
Free parameters (6):
| value | min_value | max_value | unit | |
|---|---|---|---|---|
| bn130427324_2.spectrum.main.composite.K_1 | 0.0001 | 0.0 | None | keV-1 s-1 cm-2 |
| bn130427324_2.spectrum.main.composite.alpha_1 | -1.0 | -1.5 | 3.0 | |
| bn130427324_2.spectrum.main.composite.xp_1 | 500.0 | 10.0 | None | keV |
| bn130427324_2.spectrum.main.composite.beta_1 | -2.0 | -5.0 | -1.6 | |
| bn130427324_2.spectrum.main.composite.K_2 | 1.0 | 0.0 | 1000.0 | keV-1 s-1 cm-2 |
| bn130427324_2.spectrum.main.composite.index_2 | -2.01 | -10.0 | 10.0 |
Fixed parameters (4):
(abridged. Use complete=True to see all fixed parameters)
Properties (0):
(none)
Linked parameters (0):
(none)
Independent variables:
(none)
Linked functions (0):
(none)

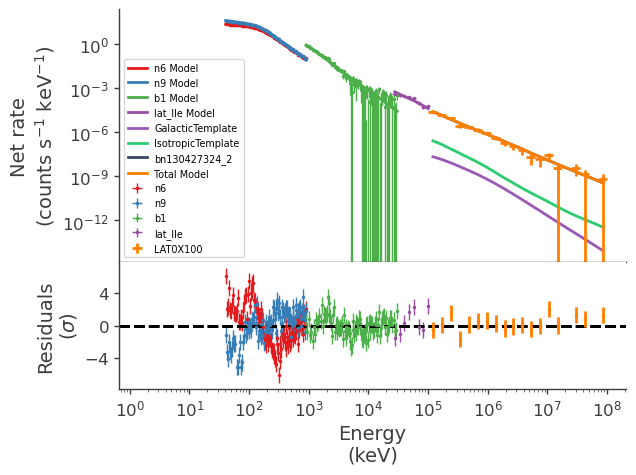

Run the joint fit again
[18]:
datalist_2 = DataList(*gbm_plugins, lle_plugin, LAT_plugin)
jl_2 = JointLikelihood(comp_model, datalist_2, verbose=False)
comp_model[LAT_plugin.get_name() + "_GalacticTemplate_Value"].value = 1.0
comp_model[LAT_plugin.get_name() + "_GalacticTemplate_Value"].fix = True
comp_model[LAT_plugin.get_name() + "_IsotropicTemplate_Normalization"].fix = False
jl_2.set_minimizer("minuit")
jl_2.fit()
Found Isotropic template for irf P8R3_TRANSIENT010E_V3: /home/runner/miniconda3/envs/test_env/share/fermitools/refdata/fermi/galdiffuse/iso_P8R3_TRANSIENT010E_V3_v1.txt
Found Galactic template for IRF. P8R3_TRANSIENT010E_V3: /home/runner/miniconda3/envs/test_env/share/fermitools/refdata/fermi/galdiffuse/gll_iem_v07.fits
Cutting the template around the ROI:
73.88 percent of samples have been thrown away because they failed the constraints on the parameters. This results might not be suitable for error propagation. Enlarge the boundaries until you loose less than 1 percent of the samples.
Best fit values:
| result | unit | |
|---|---|---|
| parameter | ||
| bn130427324_2.spectrum.main.composite.K_1 | (1.482 +/- 0.005) x 10^-1 | 1 / (keV s cm2) |
| bn130427324_2.spectrum.main.composite.alpha_1 | (-9.18 +/- 0.05) x 10^-1 | |
| bn130427324_2.spectrum.main.composite.xp_1 | (7.96 +/- 0.07) x 10^2 | keV |
| bn130427324_2.spectrum.main.composite.beta_1 | -3.022 +/- 0.030 | |
| bn130427324_2.spectrum.main.composite.K_2 | 1.1 -0.6 +1.5 | 1 / (keV s cm2) |
| bn130427324_2.spectrum.main.composite.index_2 | -1.71 +/- 0.06 | |
| cons_lat_lle | (8.000 +/- 0.034) x 10^-1 | |
| LAT0X100_IsotropicTemplate_Normalization | 5.000 +/- 0.012 |
Correlation matrix:
| 1.00 | 0.26 | -0.72 | 0.56 | -0.61 | 0.59 | 0.00 | 0.00 |
| 0.26 | 1.00 | -0.73 | 0.06 | 0.25 | -0.26 | 0.00 | -0.00 |
| -0.72 | -0.73 | 1.00 | -0.38 | 0.10 | -0.08 | -0.00 | 0.00 |
| 0.56 | 0.06 | -0.38 | 1.00 | -0.57 | 0.52 | 0.01 | 0.00 |
| -0.61 | 0.25 | 0.10 | -0.57 | 1.00 | -0.99 | -0.00 | -0.00 |
| 0.59 | -0.26 | -0.08 | 0.52 | -0.99 | 1.00 | 0.00 | 0.00 |
| 0.00 | 0.00 | -0.00 | 0.01 | -0.00 | 0.00 | 1.00 | -0.00 |
| 0.00 | -0.00 | 0.00 | 0.00 | -0.00 | 0.00 | -0.00 | 1.00 |
Values of -log(likelihood) at the minimum:
| -log(likelihood) | |
|---|---|
| n6 | 1114.370450 |
| n9 | 1061.426323 |
| b1 | 880.534017 |
| lat_lle | 70.121858 |
| LAT0X100 | 1811.602781 |
| total | 4938.055428 |
Values of statistical measures:
| statistical measures | |
|---|---|
| AIC | 9892.383584 |
| BIC | 9926.398842 |
[18]:
( value negative_error \
bn130427324_2.spectrum.main.composite.K_1 0.148247 -0.000469
bn130427324_2.spectrum.main.composite.alpha_1 -0.918492 -0.005175
bn130427324_2.spectrum.main.composite.xp_1 796.128460 -7.056467
bn130427324_2.spectrum.main.composite.beta_1 -3.021772 -0.031401
bn130427324_2.spectrum.main.composite.K_2 1.099396 -0.632951
bn130427324_2.spectrum.main.composite.index_2 -1.707483 -0.056306
cons_lat_lle 0.800015 0.000651
LAT0X100_IsotropicTemplate_Normalization 4.999886 -0.017315
positive_error error \
bn130427324_2.spectrum.main.composite.K_1 0.000506 0.000488
bn130427324_2.spectrum.main.composite.alpha_1 0.004908 0.005042
bn130427324_2.spectrum.main.composite.xp_1 7.070535 7.063501
bn130427324_2.spectrum.main.composite.beta_1 0.033473 0.032437
bn130427324_2.spectrum.main.composite.K_2 1.370428 1.001690
bn130427324_2.spectrum.main.composite.index_2 0.060194 0.058250
cons_lat_lle 0.004520 0.002585
LAT0X100_IsotropicTemplate_Normalization -0.002224 0.007546
unit
bn130427324_2.spectrum.main.composite.K_1 1 / (keV s cm2)
bn130427324_2.spectrum.main.composite.alpha_1
bn130427324_2.spectrum.main.composite.xp_1 keV
bn130427324_2.spectrum.main.composite.beta_1
bn130427324_2.spectrum.main.composite.K_2 1 / (keV s cm2)
bn130427324_2.spectrum.main.composite.index_2
cons_lat_lle
LAT0X100_IsotropicTemplate_Normalization ,
-log(likelihood)
n6 1114.370450
n9 1061.426323
b1 880.534017
lat_lle 70.121858
LAT0X100 1811.602781
total 4938.055428)
[19]:
display_spectrum_model_counts(jl_2, show_residuals=True)
[19]:
[20]:
jl_1.results.get_statistic_measure_frame()
[20]:
| statistical measures | |
|---|---|
| AIC | 10148.573622 |
| BIC | 10174.131120 |
[21]:
jl_2.results.get_statistic_measure_frame()
[21]:
| statistical measures | |
|---|---|
| AIC | 9892.383584 |
| BIC | 9926.398842 |
Plot the two components of the best-fit spectrum
[22]:
fig = plot_spectra(
jl_2.results,
ene_min=10 * u.keV,
ene_max=100 * u.GeV,
flux_unit="erg2/(cm2 s keV)",
fit_cmap="viridis",
contour_cmap="viridis",
contour_style_kwargs=dict(alpha=0.1),
use_components=True,
components_to_use=["total", "Band", "Powerlaw"],
)
Compute the flux
[23]:
jl_2.results.get_flux(
ene_min=10 * u.keV, ene_max=100 * u.GeV, use_components=True, flux_unit="1/(cm2 s)"
)
[23]:
| flux | low bound | hi bound | |
|---|---|---|---|
| bn130427324_2: Band | 56.28707573779094 1 / (s cm2) | 56.101999125897606 1 / (s cm2) | 56.50377012613122 1 / (s cm2) |
| bn130427324_2: Powerlaw | 0.31240245935403577 1 / (s cm2) | 0.1706625120731307 1 / (s cm2) | 0.5793412415190369 1 / (s cm2) |
[24]:
jl_2.results.get_flux(
ene_min=10 * u.keV, ene_max=100 * u.GeV, use_components=False, flux_unit="1/(cm2 s)"
)
[24]:
| flux | low bound | hi bound | |
|---|---|---|---|
| bn130427324_2: total | 56.654765409748165 1 / (s cm2) | 56.4873816168278 1 / (s cm2) | 56.85372196268453 1 / (s cm2) |
